1-45kV heat shrinkable accessories are essential components in medium and high-voltage power systems. Thanks to their unique heat shrinkage properties and dependable performance, they have become the mainstream solution for cable termination treatment and are extensively used in various power engineering projects. Below is a detailed introduction to their core application scenarios and key advantages, fully illustrating their technical merits and practical value in modern power infrastructure construction.
Designed to adapt to various complex indoor and outdoor operating environments based on different voltage grades and structural designs, heat shrinkable cable terminations are mainly applied in the following fields:
1-45kV heat shrinkable cable terminations serve as the preferred termination solution for incoming and outgoing cables of urban ring main units, cable branch boxes and box-type substations. They are especially ideal for 10kV to 35kV overhead-to-underground conversion projects and terminal connections of underground cable networks, perfectly catering to urban space limitations and insulation protection demands. In power grid upgrades for old residential communities and power capacity expansion of industrial parks, these terminations enable fast and stable connections between cables and electrical equipment, greatly improving overall power supply reliability.
They are widely installed on collector lines and outgoing circuits of wind power and photovoltaic booster stations. Able to adapt to variable outdoor climates and high-altitude conditions, they ensure efficient transmission of renewable energy power. Featuring superior UV aging resistance and waterproof sealing performance, they can operate stably in the long term under harsh natural conditions including sandstorms, heavy rain and snow, effectively extending the maintenance cycle of renewable energy power generation systems.
They are widely used for incoming line wiring of power distribution rooms and main power cable termination in petrochemical, metallurgical and mining industries, and are highly suitable for insulation protection in explosion-proof zones and humid working environments. In traction substations and rail transit power supply systems, heat shrinkable cable terminations can withstand continuous vibration and extreme temperature fluctuations, ensuring stable and safe power supply for railway operation.

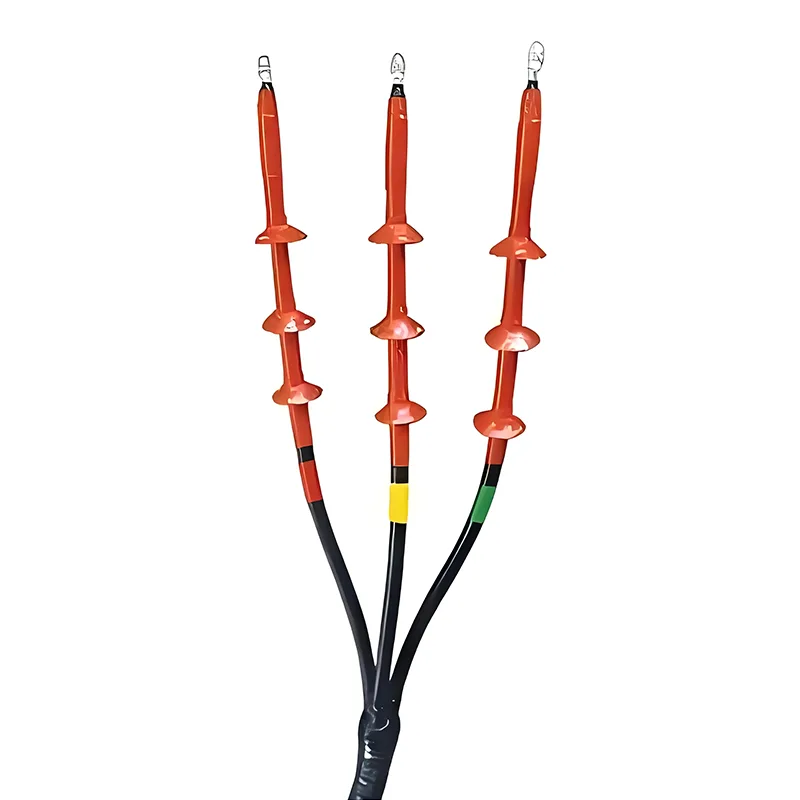

Widely adopted in core sections such as substation incoming and outgoing lines as well as high-voltage switchgear connections, heat shrinkable accessories deliver excellent stress control performance and insulation capacity. They can effectively optimize electric field distribution at cable terminals and reduce partial discharge risks, ensuring stable operation of power hubs. Outdoor-type heat shrinkable cable terminations are fitted with rainproof heat shrinkable sheds to increase insulation clearance, perfectly suiting open-air outdoor installation conditions.
Manufactured with cross-linked polyethylene (XLPE) or ethylene propylene diene monomer (EPDM) base materials blended with stress control materials, heat shrinkable cable terminations evenly optimize electric field distribution at cable ends and effectively suppress corona discharge. Their insulation strength fully meets long-term operation requirements for 1-45kV voltage levels. Built-in hot melt adhesive achieves complete sealing and moisture resistance, while the outer sheath provides strong UV aging resistance and corrosion resistance, forming a multi-layer comprehensive insulation protection system. They operate steadily within the temperature range of -40°C to +90°C with a service life exceeding 20 years.
Heat shrinkable cable terminations are small in size and light in weight, facilitating easy transportation and on-site construction. No special professional tools are required; installation can be completed quickly by heating with a hot air gun or gas torch, greatly shortening construction periods. With a radial shrinkage rate of no less than 50% and a longitudinal shrinkage rate below 5%, they fit closely onto cable surfaces after shrinking. They are compatible with single-core, three-core and other common cable types, meeting termination needs for various conductor cross-sectional areas.
Heat shrinkable cable terminations feature reasonable pricing and lower raw material costs compared with cold-shrinkable and prefabricated cable accessories. Their high installation efficiency effectively reduces on-site labor costs. Matching the service life of power cables, they require minimal routine maintenance during operation, saving substantial later maintenance expenses and delivering remarkable full life-cycle economic benefits.
Available in indoor and outdoor types, outdoor versions are equipped with dedicated shed structures featuring excellent anti-pollution flashover and rainproof performance, ideal for harsh environments such as coastal salt fog areas and industrial dust zones. Boasting good vibration and impact resistance, they work reliably under high-vibration conditions in rail transit and mining scenarios. Additionally, they fit both copper-core and aluminum-core cables, covering terminal connection demands for diverse cable materials.
Our heat shrinkable accessories comply with national and international standards including GB 11033 and IEC 60502-4, and have passed professional assessment and testing by authoritative institutions such as the Wuhan High Voltage Research Institute, guaranteeing high operational safety and stability. The independent double grounding wire design enables separate grounding for cable steel armor and copper shielding layers, further enhancing system safety and lowering equipment failure risks.
