Huixing Zhongdian (Beijing) Electric Co., Ltd. offers four core grounding material solutions for the Americas, including the United States, Canada and Latin America: pure copper, copper-clad steel, stainless steel and galvanized steel. All products conform to North American NEC standards, Canadian CEC standards, and UL & IEC certifications. We also supply supporting power fittings and substation fittings to deliver complete, integrated grounding systems for power utilities, industrial facilities and renewable energy projects.
Core Application Scenarios
Pure Copper Grounding Materials (Purity ≥ 99.9%)
-
Applicable to EHV substations of 500 kV and above and nuclear power plants, enabling rapid fault current dissipation and keeping ground resistance steadily below 0.5 Ω.
-
Ideal for data centers and 5G communication towers to prevent static accumulation and electromagnetic interference (EMI).
-
Suitable for coastal regions and chemical industrial zones. They boast a service life of over 50 years without additional protective coatings, and offer strong resistance to salt spray and acidic soil corrosion.
-
Used in aerospace and defense projects to provide ultra-low resistance and superior operational stability for critical facilities.

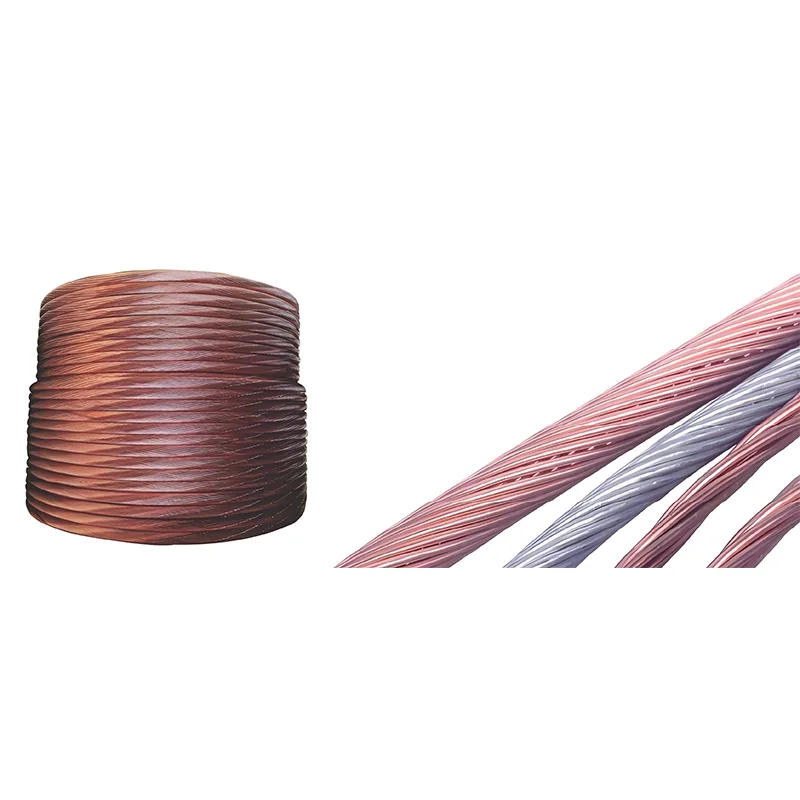

Copper-Clad Steel Grounding Materials (Copper Layer Thickness ≥ 0.25 mm)
-
Perfect for grid upgrading and expansion projects, allowing 40% faster installation in rocky terrains via mechanical embedding.
-
Widely used in wind and solar power plants, combining steel’s tensile strength above 650 MPa with copper’s excellent electrical conductivity.
-
Applied to urban rail transit systems. Their high-frequency impedance is 60% lower than that of pure steel, effectively mitigating stray current corrosion.
-
Preferred for commercial building lightning protection systems, cutting overall costs by 30% to 45% compared with pure copper alternatives.
Stainless Steel Grounding Materials (304 / 316L Grade)
-
Designed for offshore wind platforms and marine facilities, achieving over 1000 hours of salt spray resistance without rust formation.
-
Adopted in chemical and metallurgical plants, featuring a service life exceeding 60 years in heavily corrosive soil and harsh industrial environments.
-
Suitable for concrete-embedded grounding works, fully complying with IEEE Std 80 and preventing galvanic corrosion with steel rebars.
-
Applicable to heavily polluted industrial zones, resisting performance deterioration caused by industrial exhaust erosion.

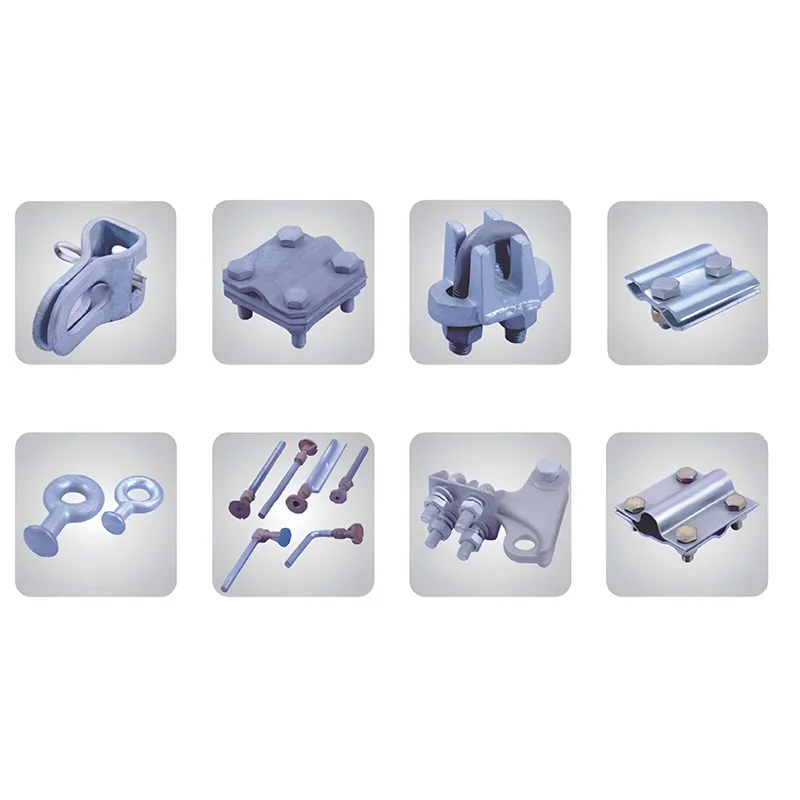

Galvanized Steel Grounding Materials (Zinc Coating Thickness ≥ 86 μm)
-
Ideal for rural distribution networks and residential buildings as a cost-effective choice to meet basic grounding requirements.
-
Suitable for temporary construction sites and emergency projects, enabling rapid deployment for on-site safety protection.
-
Suitable for low-voltage distribution systems and fully compliant with NEC and CEC standards under normal soil conditions.
-
Widely used in municipal infrastructure, serving as the optimal solution for large-scale street lighting and traffic signal grounding systems.
Key Performance Advantages
|
Material Type
|
Core Technical Specifications
|
Primary Value for American Markets
|
|
Pure Copper
|
≥98% IACS conductivity; ≤1.724×10⁻⁸Ω·m resistivity
|
Fastest fault current dissipation; 50+ year service life; UL 467-listed
|
|
Copper-Clad Steel
|
≥350MPa bonding strength; ≥30% IACS conductivity
|
30-45% lower cost than pure copper; 50% faster installation; ASTM B690-compliant
|
|
316L Stainless Steel
|
≥500MPa tensile strength; 1000+ hour salt spray resistance
|
60+ year service life; no galvanic corrosion; ideal for extreme environments
|
|
Galvanized Steel
|
≥86μm hot-dip zinc coating
|
1/5 to 1/3 the cost of copper; 15-20 year service life; fully recyclable
|
Competitive Advantages in the Americas
-
Full Regulatory Compliance: All products are certified to UL 467, IEC, NEC, and CEC standards. Copper-clad steel and stainless steel additionally meet ASTM B690 and ASTM A36 requirements, eliminating market entry barriers.
-
Reduced Operating Costs: Long service lives and durable designs lower annual maintenance expenses by over 30%, minimizing downtime and enhancing grid reliability.
-
Regional Customization: Tailored solutions for specific environmental conditions (e.g., Southwest alkaline soils, Canadian permafrost) with professional engineering support for optimal system design.
-
ESG Alignment: Environmentally friendly materials with no heavy metal emissions support customers' sustainability goals and ESG ratings.
Proven Case Studies
-
Texas Wind Farm: Copper-clad steel grounding rods (0.3 mm copper layer) replaced traditional galvanized steel, achieving stable ground resistance <1 Ω, reducing annual maintenance costs by $800,000, and extending service life to 50 years.
-
Ontario Nuclear Power Plant: The 316L stainless steel grounding system has operated for 10 years without corrosion in high-radiation, corrosive environments, maintaining 100% system reliability.
-
California Data Center: A 99.99% pure copper grounding grid maintains ground resistance <0.2 Ω, eliminating electrostatic interference and preventing $5 million in annual equipment damage.
Conclusion
Grounding materials form the critical safety foundation of all power systems. Huixing Zhongdian's comprehensive range of copper, copper-clad steel, stainless steel, and galvanized steel grounding products—combined with our power fittings and substation fittings—delivers compliant, high-performance solutions tailored to the unique challenges of the American market.
From utility grid upgrades to renewable energy projects and industrial facilities, our products ensure long-term system stability, reduce operational costs, and support the transition to a sustainable energy future across the Americas.
