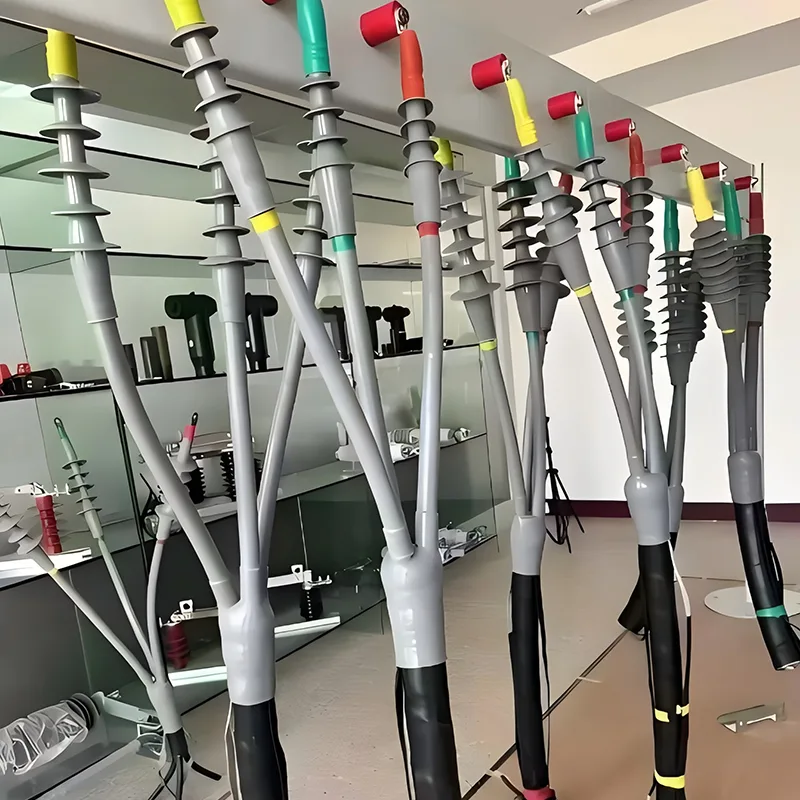

Cold shrinkable accessories represent a cutting-edge generation of cable accessories that have gained widespread adoption in power systems worldwide, thanks to their revolutionary installation method and exceptional performance characteristics. Unlike traditional heat-shrink alternatives, these pre-expanded elastic components deliver superior reliability, safety, and installation efficiency, making them the preferred choice for demanding electrical applications. Below is a comprehensive analysis of their core application scenarios and distinctive technical advantages, highlighting their unique value proposition in modern power infrastructure.
Cold shrinkable accessories are specifically engineered to address the most challenging power connection requirements across diverse industries:
They are the mandatory solution for petrochemical plants, underground mines, gas stations, and fuel depots where open-flame operations are strictly prohibited. By eliminating the need for heat application during installation, cold-shrink terminations completely eradicate fire and explosion risks at the source. In China's chemical industry, the utilization rate of cold-shrink terminations has already exceeded 85%.
Ideal for urban underground utility tunnels, subway tunnels, cable vaults, box-type substations, and ring main units where space is severely limited. Installation requires only pulling out the internal support strips, with no spatial constraints, and can be completed by a single operator. Installation efficiency is three times higher than that of heat-shrink terminations.
Extensively deployed in wind farm collector lines (withstanding temperatures as low as -40°C) and photovoltaic power plant DC cable connections. Their exceptional weather resistance and sealing performance enable reliable operation in extreme climatic conditions. In domestic wind power projects, the utilization rate of cold-shrink terminations reaches an impressive 92%.
Used for cable connections in subway and high-speed railway power supply tunnels. Constructed from low-smoke, halogen-free silicone rubber materials, they produce minimal smoke density during combustion, fully complying with IEC 60332-3 fire safety standards to ensure passenger and personnel safety.
Applied in 35kV and above substation GIS equipment connections and submarine cable landing terminals. Their fully sealed structure achieves partial discharge levels below 3pC, delivering insulation reliability that far surpasses traditional cable accessories.
Manufactured from pre-expanded elastomeric materials (silicone rubber or EPDM), cold shrinkable accessories rely on the material's "elastic memory" to automatically shrink and conform tightly to the cable when the internal support core is removed. No heating tools are required, eliminating insulation damage and fire hazards associated with heat-shrink processes. A single 10kV three-core cold-shrink termination can be installed in less than 30 minutes, significantly reducing construction costs.
The elastomeric material provides continuous radial compression force (with less than 10% attenuation over the service life), creating a dynamic "breathing effect" that synchronizes with cable thermal expansion and contraction. This completely eliminates interface gaps, effectively preventing moisture and dust ingress, and achieving an IP68 waterproof rating. Their partial discharge inception voltage is 20-30% higher than that of heat-shrink terminations, resulting in substantially improved insulation reliability.
Cold-shrink cable terminations operate reliably across an extremely wide temperature range from -40°C to +105°C. Silicone rubber materials offer outstanding UV resistance, ozone resistance, and corona resistance, with an outdoor service life exceeding 30 years—more than five times longer than that of heat-shrink terminations (4-6 years). They adapt seamlessly to indoor, outdoor, overhead, and buried applications without requiring additional protective measures.
Featuring an integrated prefabricated design with stress cones, outer insulation tubes, and rain sheds molded as a single unit, they are compact and lightweight. Each size specification is compatible with multiple cable diameters, significantly reducing spare parts inventory requirements. Grounding connections use constant-force springs, eliminating the need for welding or copper binding wires and further simplifying installation procedures.
While initial purchase costs may be higher than those of heat-shrink products, cold shrinkable accessories offer significantly better overall economics when considering faster installation, longer maintenance-free intervals, and lower failure rates. When factoring in construction costs, outage losses, and maintenance expenses, their total lifecycle cost is actually more advantageous than that of traditional alternatives.
