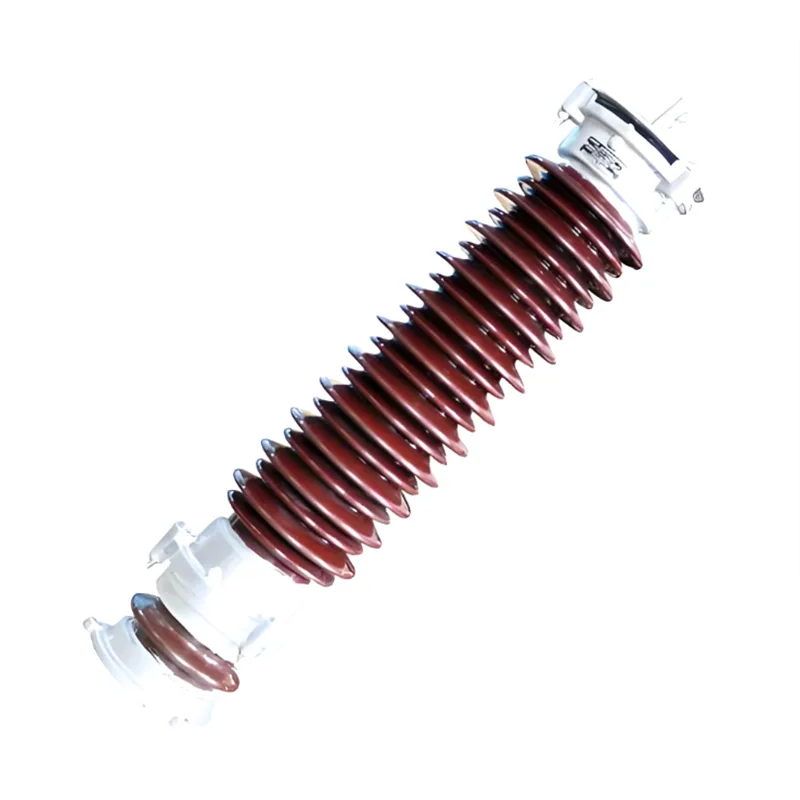

The 72.5kV–220kV High Voltage Surge Arrester is a mission-critical overvoltage protection device for power transmission and distribution systems, with proven performance in thousands of global power infrastructure projects. Widely applied in utility, renewable energy and industrial sectors, it relies on precise voltage limiting and surge current discharge capabilities to ensure the safe and stable operation of high-voltage power equipment.
In 72.5kV, 126kV, 145kV, and 220kV outdoor substations, the arrester is installed near key equipment such as power transformers, high-voltage disconnectors, circuit breakers and busbar inlet and outlet circuits. It suppresses lightning incoming surges and switching overvoltages, effectively preventing insulation breakdown and irreversible damage to transformer windings, insulators and other critical high-voltage equipment.
Installed along 220kV overhead transmission lines and key tower positions, the arrester effectively reduces lightning trip-out rates and improves line insulation performance. It is especially suitable for high-voltage line protection in mountainous areas, high lightning density regions and heavily polluted areas.
Deployed on the high-voltage side of step-up transformers and grid connection bays in thermal, hydro, wind and photovoltaic power plants, the arrester absorbs energy from switching overvoltages and lightning surges. It protects the insulation of generator sets, main transformers and other core equipment, while stabilizing operating conditions during grid integration.
As a core overvoltage protection component in self-built 110kV/220kV high-voltage distribution systems of large industrial facilities including metallurgical, chemical and urban rail transit projects, the arrester provides all-weather insulation protection for high-voltage switchgear, reactors and other heavy-duty electrical equipment.
Adopting industry-leading zinc oxide Metal Oxide Varistor (MOV) technology, the 72.5kV–220kV High Voltage Surge Arrester features five core advantages and fully complies with IEC 60099-4 international standards, delivering reliable and long-lasting performance in diverse operating environments.
This high voltage surge arrester is equipped with high-performance MOV chips with excellent non-linear volt-ampere characteristics. Under normal operating voltage, it remains nearly insulated with extremely low leakage current. When lightning or switching overvoltage occurs, it quickly switches to low-impedance conduction, instantaneously discharges surge current, and limits system overvoltage within a safe range to protect the insulation integrity of high-voltage equipment.
Its gapless fully encapsulated design eliminates common defects of traditional gap-type arresters, such as unstable arc extinction and dispersion of breakdown voltage. It boasts excellent pollution resistance and corona resistance, adapts to harsh outdoor conditions including extreme temperatures, ice coating and salt spray, and suffers minimal performance aging and degradation during long-term operation.
The varistor chips are designed with ample discharge capacity, capable of withstanding multiple lightning impulses and short-duration switching impulses. It also offers outstanding short-circuit current withstand performance, avoiding cracking, explosion and other failure risks under instantaneous high-current impact, perfectly adapting to complex operating conditions of high-voltage power grids.
Fitted with a composite silicone rubber housing, the arrester delivers excellent sealing, waterproof, moisture-proof, UV-resistant and anti-aging properties, maintaining stable insulation performance over decades of outdoor service. Its compact structure and high mechanical strength allow easy installation, with no frequent maintenance required during operation, greatly reducing O&M costs for high-voltage substations.
Covering the full voltage range from 72.5kV to 220kV, the arrester is compatible with substations, transmission lines and power plant systems of various voltage levels. It supports multiple mounting methods including vertical and suspension installation, and can be perfectly matched with high-voltage disconnectors, transformers, busbars and other equipment, meeting the design requirements of various high-voltage transmission and distribution projects.
For power grid operators, renewable energy developers and large industrial end-users, the 72.5kV–220kV High Voltage Surge Arrester serves as a reliable and cost-effective solution to mitigate overvoltage risks, reduce unplanned outage losses and extend the service life of critical high-voltage power assets.
