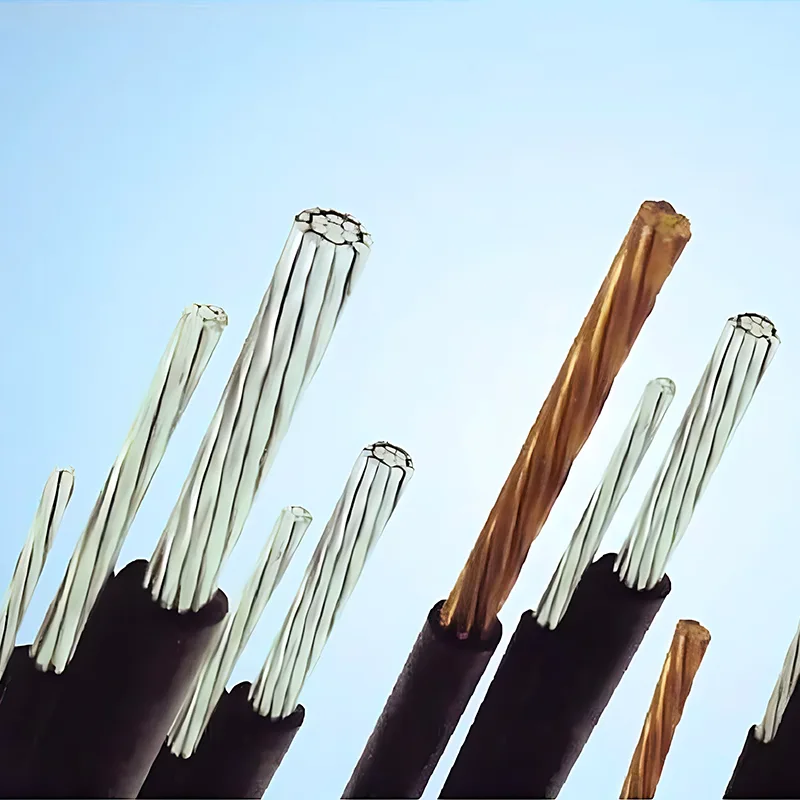

Insulated overhead cables are premium low-voltage power transmission products manufactured in full compliance with the national standard GB/T 12527-2008 (Aerial insulated cables for rated voltages up to and including 1kV). They are designed for overhead power distribution systems with an AC rated voltage up to 1kV. These cables use copper, aluminum or aluminum alloy conductors, together with three weather-resistant insulation materials: PVC, PE and XLPE. They provide flexible and safe power supply solutions to meet diverse outdoor overhead transmission requirements. As a cost-effective alternative to conventional bare conductors, they have become the mainstream choice for upgrading urban and rural power distribution networks.
Specially developed for low-voltage overhead power transmission at 1kV and below, insulated overhead cables meet the daily power supply needs of urban distribution networks, rural grid renovations and industrial parks. The main operating and installatio specifications are as follows:
Suitable for low-voltage overhead power transmission of 1kV and below, meeting distribution requirements for residential, commercial and light industrial applications
PVC & PE insulated cables: Maximum long-term conductor temperature of 70°C
XLPE insulated cables: Maximum long-term conductor temperature of 90°C, suitable for high-load conditions
Minimum Installation Temperature: -20°C, enabling winter construction and reliable long-term operation in cold regions
Bending Radius: For cables with outer diameter D < 25mm, the minimum bending radius shall be no less than 4D; for D ≥ 25mm, the minimum bending radius shall be no less than 6D, facilitating easy installation in various environments
Insulated overhead cables offer five distinct benefits that make them the preferred solution for modern low-voltage overhead distribution systems:
Available with three conductor types and three insulation materials, the cables can be selected flexibly according to line load and environmental conditions, fully satisfying overhead transmission projects in cities, rural areas, industrial parks and other scenarios.
Constructed with weather-resistant insulation, the cables withstand direct sunlight, rain erosion and temperature fluctuations. The outer insulation layer protects the conductor from corrosion, greatly extending service life and improving the operational stability of overhead lines compared with traditional bare wires.
The insulation layer effectively prevents short circuits and reduces electric shock risks, making it particularly suitable for densely populated areas, forest zones and mining areas with strict safety requirements. It also minimizes line failures caused by tree branches, birds and other external interference.
Standardized bending radius simplifies on-site construction. The wide temperature adaptability reduces seasonal restrictions and lowers overall maintenance costs throughout the service life.
Classified by insulation material with different long-term temperature ratings (70°C / 90°C), the cables allow customers to select the right type based on actual load characteristics. This ensures safe operation, avoids unnecessary resource waste, and improves the economic efficiency of overhead power transmission.
