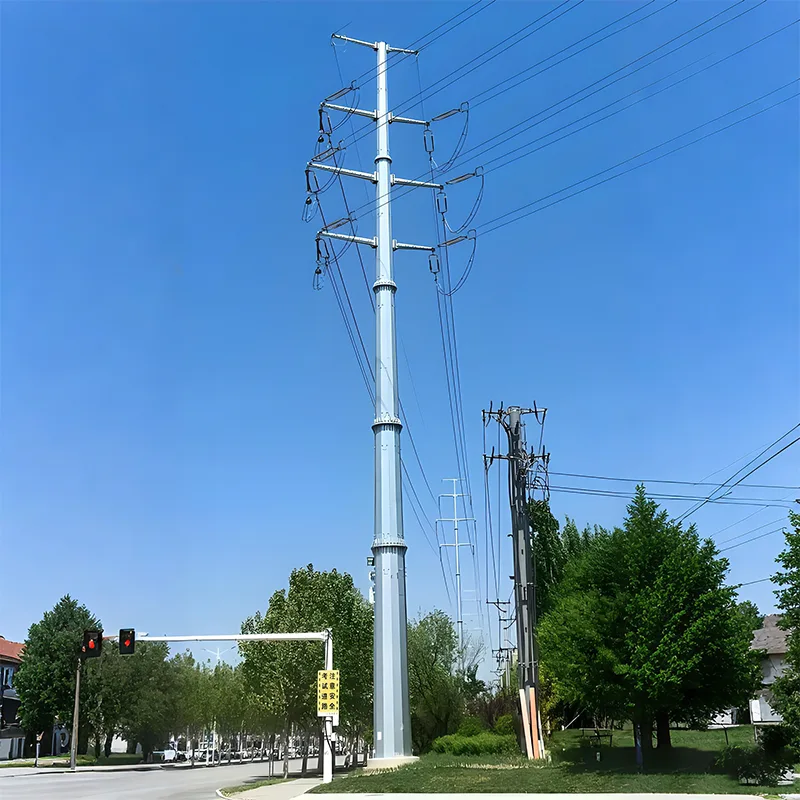

Electric power steel poles serve as core supporting facilities for modern power grid construction. Owing to their compact structure and excellent performance, they have been widely used in urban and rural power grids as well as renewable energy grid integration projects, emerging as the preferred replacement for traditional concrete poles and partial power transmission towers. The following elaborates on their core application scenarios, prominent strengths as well as their technical and practical value in modern power infrastructure development.
These multi-purpose steel structures are professionally developed to address key challenges in modern power distribution engineering:
Their narrow-base design covers only one-third of the land area required for angle steel towers, making them perfect for urban main roads, central business districts and high-speed railway zones with limited line corridors. With sleek streamlined profiles and customizable colors, they blend seamlessly into urban landscapes. Certain low-noise models adopt vibration damping technology to keep conductor vibration noise below 45 decibels, complying with stringent urban acoustic environment standards. During the renovation project of Urumqi High-speed Railway New Area, the extensive application of 12-sided tapered steel poles reduced the land occupation of a 10-kilometer power line from 120 acres to 45 acres, saving over 200 million yuan in land-related expenses.
They show outstanding advantages in narrow mountainous areas, areas alongside highways and railways, and sites unsuitable for tower erection. Featuring small foundation sizes and fast on-site assembly, they can be installed via helicopter hoisting or manual erection, greatly shortening construction cycles. Hot-dip galvanized steel poles resist salt spray erosion in high-corrosion coastal areas; desert photovoltaic power stations adopt 1000MPa high-strength steel poles with sand-resistant coatings, which can withstand an average of 8 sandstorms per year and maintain an equipment integrity rate of 99.2%.
Wind and solar clean energy bases widely use these poles to construct power collection lines. Their high-strength structure is perfectly suited to strong wind conditions in wind farms and open terrains of photovoltaic power plants. In industrial parks and chemical plants that require high power supply reliability, their excellent resistance to wind, ice and torsion guarantees stable power supply for continuous production.
They can quickly replace wooden poles and concrete poles in old urban power grid upgrading projects. The single-pole integral hoisting method allows workers to install 10 poles per day, with construction efficiency 5 to 6 times higher than that of concrete poles. In emergency power maintenance scenarios, their convenient transportation and fast installation enable rapid power restoration and minimize power outage losses.
With a narrow-base design, their foundation area is only one-third that of traditional towers, and they reduce overhead line corridor demand by 25%, effectively easing the shortage of urban land resources. Their compact structure requires no guy wires and causes no interference to surrounding buildings and traffic, making them highly suitable for densely populated areas.
Electric power steel poles adopt modular prefabrication combined with mechanized integral hoisting, requiring no on-site welding. Individual workers can complete part of the assembly work. They have lower transportation costs than concrete poles and offer more prominent advantages in mountainous and other complex terrains, which greatly shortens project cycles and lowers construction costs.
The closed steel pipe cross-section delivers far better resistance to wind, ice and torsion than traditional concrete poles and can bear larger loads. Made of high-strength steel such as Q345B and processed by hot-dip galvanization with a zinc coating thickness of no less than 70μm, they have an outdoor service life of over 30 years, much longer than wooden poles.
Boasting sleek streamlined designs and customizable colors matching the surrounding environment, they beautify urban landscapes. Optimized structural design reduces conductor vibration noise to meet urban noise control requirements. All raw materials are 100% recyclable, complying with green and low-carbon development concepts.
Though the initial procurement cost is higher than that of concrete poles, electric power steel poles deliver better comprehensive economic benefits when taking faster installation, lower subsequent maintenance costs and fewer failure risks into account. Standardized design and mass production have also effectively reduced manufacturing costs.
Characterized by small land occupation, fast installation, high strength, elegant appearance and long service life, electric power steel poles have become the optimal choice for modern power grid construction. They boast irreplaceable advantages, especially in urban power grid renovation, new energy grid integration and construction in complex terrains. With the accelerated development of smart grids and new energy infrastructure, their application scope will continue to expand steadily.
