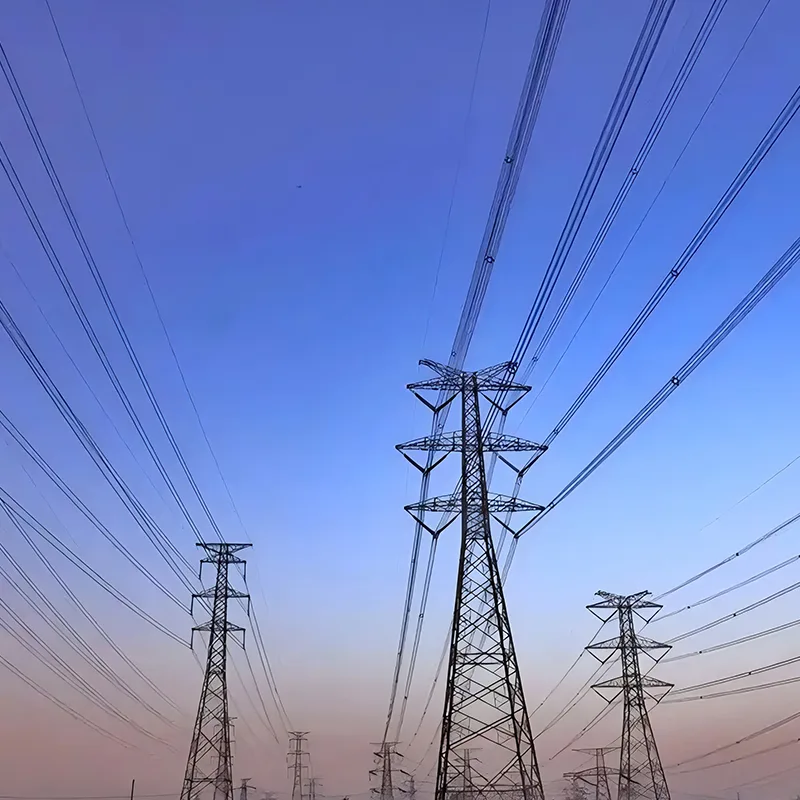

Power transmission towers are the core supporting structures of power transmission systems. Featuring excellent mechanical properties and high structural stability, they serve as the steel backbone for modern power grid construction. Below are their core application areas and prominent advantages, demonstrating their technical strengths and practical value in global energy infrastructure development.
These heavy-duty steel structures are essential for power infrastructure construction, with customized designs to meet diverse operational needs:
They underpin national energy strategies including West-to-East Power Transmission and North-to-South Power Supply, and are widely used in 110kV to 1100kV EHV and UHV transmission lines. Straight-line towers account for over 80% of all line structures to support power conductors; tension towers withstand great mechanical tension at line corners and section points to prevent fault propagation. For example, Q420 high-strength steel towers applied in 750kV EHV transmission lines in Xinjiang stand 68 meters high and can span Gobi areas up to 500 meters in width.
In wind and solar energy bases, these towers play a key role in delivering clean power to major load centers. The ±800kV UHVDC Hami-Zhengzhou Project adopts T-type towers to support positive and negative conductors with a 22-meter pole spacing, ensuring stable large-scale renewable energy power transmission. Their high-strength structure adapts perfectly to strong wind conditions in wind farms and open layouts of photovoltaic power stations.
These steel towers are suitable for plains, mountains, coastal areas, deserts and other complex landforms. In the Kunlun Mountains, towers built at altitudes up to 2500 meters adopt ropeway material transportation and manually excavated deep foundations to guarantee structural stability. Specially reinforced crossing towers are used to cross rivers, canyons and other obstacles for uninterrupted power line operation. Coastal versions are strengthened to resist wind speeds up to 45m/s and withstand typhoons.
Medium and low-voltage steel towers ranging from 1kV to 35kV are widely deployed in urban and rural distribution networks to connect substations and end users. Elegant steel poles are popular in cities to balance safety and landscape aesthetics; angle steel towers with simple structure and high cost-effectiveness are preferred in rural areas to meet long-distance power supply demands.
Power transmission towers adopt triangular truss structures based on the principle of geometric invariance for superior structural stability. They can bear loads from conductors, insulators and ice coating, and resist strong winds, earthquakes, conductor tension and other external forces. Hot-dip galvanized anti-corrosion treatment ensures an outdoor service life of more than 50 years, far longer than ordinary steel structures. Grids supported by these towers offer superior disaster resistance in extreme weather, safeguarding power supply for key facilities.
The modular design enables full disassembly for convenient delivery to remote mountainous and hard-to-reach areas. Bolted connections eliminate on-site welding work, greatly shortening construction cycles, and part of the assembly work can be finished by a single worker. Adjustable tower height and span make them compatible with different voltage grades and field conditions, reducing spare parts inventory burden.
Though requiring higher upfront investment than traditional concrete poles, these steel towers deliver better comprehensive economic benefits thanks to long service life, low maintenance needs and low failure rates. In plain areas, appropriately increased line spans reduce the number of towers per kilometer and optimize engineering investment. Standardized design and mass production also effectively lower manufacturing costs.
Modern power transmission towers are integrated with lightning protection, insulation and online monitoring functions to ensure safe line operation. They can be manufactured into straight-line, tension, angle, terminal and other types to satisfy diverse requirements of different line sections. Optimized conductor layout and insulation configuration for UHV towers realize low-loss and high-efficiency power transmission.
With high strength, high reliability and strong environmental adaptability, power transmission towers have become indispensable core facilities in power engineering. They enjoy unique advantages in long-distance power transmission, new energy grid integration and complex terrain crossing. With the rapid development of smart grids and new energy infrastructure, their application scope will keep expanding, offering solid support for global energy security and socioeconomic development.
