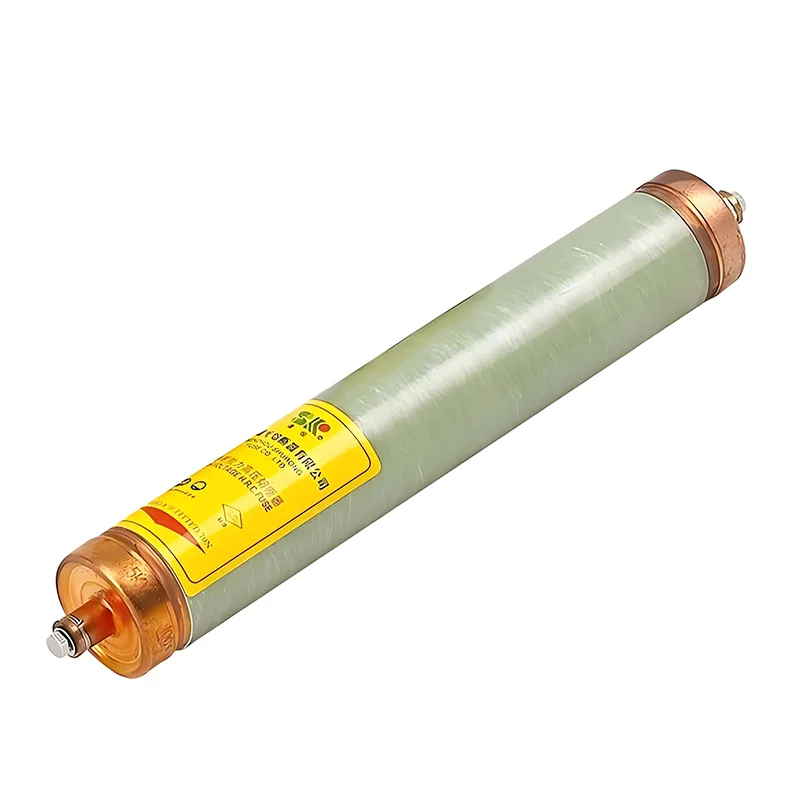

High-voltage Current-limiting Fuses for Overload Protection of Oil-immersed Transformers are dedicated protective components in the 10kV–40.5kV medium-voltage distribution networks. Focused on addressing both overload and short-circuit protection requirements of oil-immersed transformers, they deliver precise overload response and reliable current-limiting capability, serving as core devices for ensuring safe equipment operation. Below is a detailed explanation of their key application scenarios and distinctive advantages, highlighting their exclusive adaptation value for transformer protection.
These specialized protective devices are engineered specifically to meet the unique operational challenges of oil-immersed transformers across diverse power system applications.
Production loads in industries such as steel, chemical, and building materials experience significant fluctuations, exposing oil-immersed transformers to continuous overload risks. These fuses respond precisely to long-term overload conditions while simultaneously handling short-circuit faults, preventing transformer winding overheating, aging, or breakdown and ensuring uninterrupted production power supply.
Residential and commercial loads exhibit substantial peak-valley differences, often causing overloads during peak electricity usage periods. These fuses adapt to harsh outdoor environments including salt spray, temperature variations, and sandstorms. Installed directly on the high-voltage sides of pole-mounted transformers, they work in conjunction with load break switches to form an economical protection solution, preventing equipment failures caused by overloads.
The highly variable output of wind and photovoltaic power stations frequently causes overloads in grid-connected oil-immersed transformers. These fuses accurately distinguish between normal magnetizing inrush currents and overload currents to avoid false tripping, while rapidly interrupting short-circuit faults to ensure stable grid connection of renewable energy.
Compact equipment such as American-style pad-mounted transformers has limited space, and their internal oil-immersed transformers operate in enclosed environments for extended periods. These fuses feature a compact structural design that allows direct immersion installation in transformer oil, saving space while providing real-time overload monitoring—perfectly adapting to the integrated operation requirements of pad-mounted substations.
High-voltage Current-limiting Fuses for Overload Protection of Oil-immersed Transformers feature optimized inverse time-current characteristics that precisely match the overload tolerance curves of oil-immersed transformers. They operate with time delay during light overloads to avoid unnecessary power outages, while achieving millisecond-level melting during severe overloads or short circuits. This balances equipment protection with power supply continuity and effectively withstands normal transformer magnetizing inrush currents.
Specifically designed for oil-immersed operating conditions, the connections between end caps and fuse tubes adopt dual protection with oil-resistant rubber gaskets and sealants, completely eliminating transformer oil leakage and moisture ingress. The fuse tube material is resistant to oil corrosion and high temperatures, providing a service life exceeding 15 years in oil environments—matching the full lifecycle operation requirements of oil-immersed transformers.
In addition to precise overload protection, these fuses possess exceptional current-limiting capability, restricting short-circuit currents before they reach peak values to minimize electrodynamic impact. The quartz sand-filled sealed porcelain tube structure rapidly extinguishes arcs, preventing re-ignition and overvoltage generation. With interrupting ratings exceeding 1000MVA, they effectively eliminate explosion risks in oil-immersed environments.
Featuring a plug-in modular design with small size and light weight, these fuses can be directly installed on transformer high-voltage sides or inside pad-mounted substations. No complex tools are required, allowing single-person replacement in just 5–10 minutes. Standardized interfaces adapt to oil-immersed transformers of various capacities, with a wide range of rated current options (10A–80A), reducing spare parts inventory requirements.
Compared to circuit breaker plus overload relay combination solutions, these fuses require only 1/3 to 1/5 of the initial investment. With no complex operating mechanisms, maintenance costs are virtually zero. Their precise protection reduces transformer repair costs and outage losses, delivering outstanding long-term operational cost-effectiveness.
