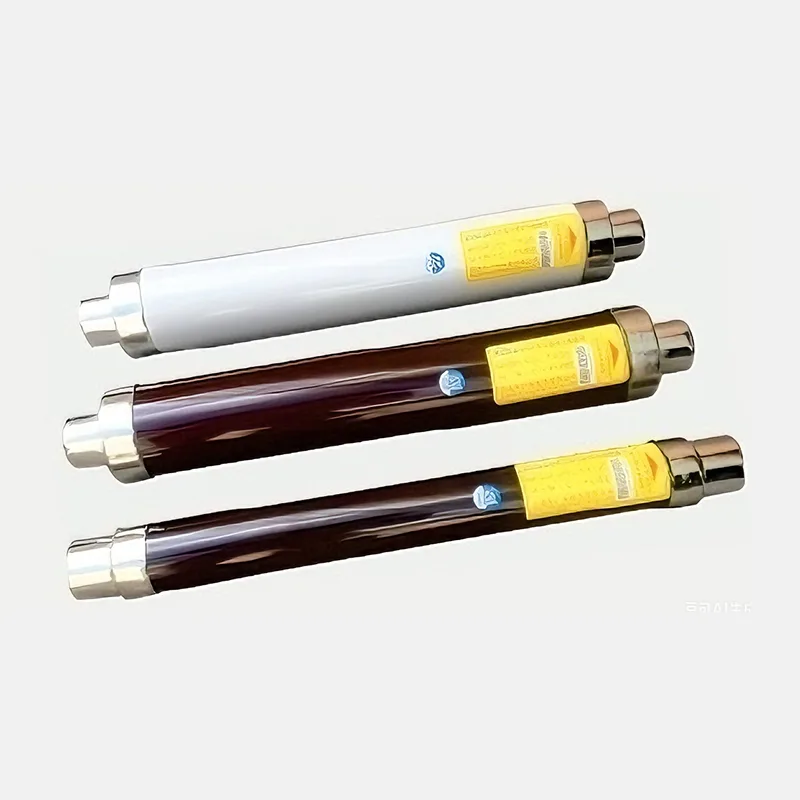

High-Voltage Limit-Current Fuse for Protection Transformer are essential protective devices for distribution transformers in power systems. Featuring millisecond-level fast current limiting and reliable breaking capacity, they are widely applied in 10kV–40.5kV medium-voltage distribution networks, serving as key equipment to guarantee transformer safety and power grid stability. Below is an in-depth introduction to their core applications and outstanding performance advantages, demonstrating their technical merits and practical value in modern power infrastructure.
These professional protective devices are developed to meet targeted protection demands of distribution transformers in various power system scenarios:
They are most commonly used as main protection elements for the high-voltage side of 10kV and 35kV medium-voltage distribution transformers, including oil-immersed and dry-type types. When internal faults such as winding short circuits and insulation failure, or external line short circuits cause overcurrent, the fuses blow rapidly before short-circuit current reaches its peak to cut off faulty circuits. This avoids transformer burnout or explosion caused by overheating and electrodynamic force, and restricts fault spread across the whole power grid. Popular models include XRNT1, CEF and STR20, with rated currents ranging from 10A to 80A to match different transformer capacities.
In urban distribution network ring main units and box-type substations, these fuses cooperate with load break switches to form an economical and efficient "fuse + load break switch" protection scheme. This solution replaces expensive circuit breakers and greatly cuts down equipment investment costs. Their compact plug-in structure fits well inside space-limited ring main units, realizing fast fault isolation and reliable sectionalized power supply, which is highly suitable for densely loaded urban power distribution areas.
They are widely installed in collector lines of wind farms and photovoltaic power stations, as well as high-voltage distribution systems of industrial plants to protect grid-connected transformers. They can cope with output fluctuation of renewable energy sources and impact loads from industrial production, stabilize system voltage, ensure accurate relay protection, and support safe grid connection of new energy and stable industrial power supply.
Special customized versions including anti-corrosion and fully-sealed types are available for transformers operating in harsh conditions such as coastal salt fog zones, desert sandstorm areas and high-altitude regions. They resist external environmental corrosion steadily, maintain consistent protection performance, extend equipment service life and reduce daily maintenance expenses.
High-voltage current-limiting fuses deliver excellent current-limiting performance and complete fault interruption within 3 to 6 milliseconds, much faster than circuit breakers which usually take tens of milliseconds. They restrain short-circuit current at its rising stage with a current limiting ratio below 0.35, effectively lowering electrodynamic impact and thermal damage, protecting transformer windings and insulation structures and reducing post-fault maintenance costs.
Adopting quartz-sand filled sealed porcelain tube structure, the fuses can rapidly cool and extinguish electric arcs generated during fusing, preventing arc restrike and overvoltage occurrence. Made of high-temperature and high-strength fuse tubes, they boast an interrupting capacity over 1000MVA, ensuring safe breaking under fault conditions and eliminating risks of phase-to-phase short circuit and equipment explosion.
Small in size and light in weight, they adapt to diverse installation layouts. The plug-in design enables quick fuse replacement without special tools, which can be finished by one operator within 5 to 10 minutes, minimizing power outage losses. With unified standard interfaces, they are highly compatible with load break switches, ring main units and other mainstream equipment, simplifying engineering design and on-site construction.
Compared with circuit breakers, these fuses feature far lower initial procurement cost, only 1/5 to 1/10 of that of circuit breakers. With simple internal structures without complex mechanical moving parts, they require almost no routine maintenance. Supported by long service life and low failure rate, the matching application of fuses and load break switches forms a highly cost-efficient protection scheme ideal for large-scale promotion in distribution networks. Timely fault isolation also narrows outage influence and improves overall power supply reliability.
These High-Voltage Limit-Current Fuse for Protection Transformers own precise time-current characteristics with control error within ±10%, achieving reliable selective coordination with upper and lower-level protection devices such as low-voltage circuit breakers and other fuses. Only faulty branches will be tripped off to avoid large-area power outages. Premium models are also equipped with built-in over-temperature protection to prevent fuse overheating and further enhance overall operational stability.
