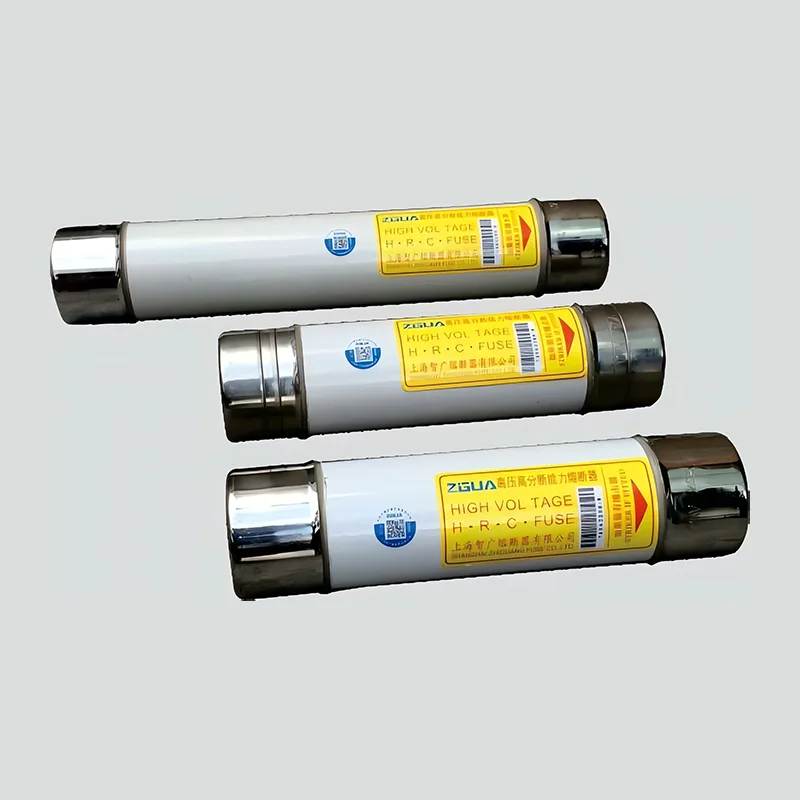

High Voltage Limit Current Fuse for Oil-Immersed Transformers are core protective components used in 10kV–40.5kV medium-voltage distribution networks. With superior oil immersion compatibility and millisecond-level current-limiting breaking capacity, they are essential equipment to ensure the safe operation of oil-immersed transformers. Below is a detailed overview of their major application scenarios and prominent performance advantages, highlighting their technical strengths and practical value in modern power infrastructure construction.
Tailored to suit the unique operating conditions of oil-immersed transformers, these professional protective fuses are widely applied in multiple power system fields:
They act as main high-voltage side protection for American-style pad-mounted transformers and unit substations. Available with busbar connection or dry barrel plug-in designs, they can be directly installed inside transformer oil tanks. Built with triple-layer sealing structures optimized for oil-filled environments, they achieve outstanding sealing performance and block moisture ingress that would impair insulation properties. They mainly safeguard transformers against internal winding short circuits, insulation breakdown and secondary-side short-circuit faults, effectively preventing transformer burnout or explosion caused by overheating and electrodynamic stress.
In urban and rural distribution networks, these fuses are fitted on the high-voltage side of outdoor pole-mounted oil-immersed transformers. Used in combination with load break switches, they constitute an economical and highly efficient protection solution. They can withstand severe outdoor environments including salt spray, sandstorms and drastic temperature fluctuations, and isolate faults swiftly to stop fault propagation throughout the power grid, securing stable power supply for residential and industrial users.
In collector circuits of wind farms and photovoltaic power plants, these fuses offer reliable protection for grid-connected oil-immersed transformers. Variable and intermittent power output from renewable energy sources tends to generate unstable transformer magnetizing inrush current. These fuses can precisely distinguish normal inrush current from fault current to avoid false tripping, guarantee accurate voltage measurement and stable relay protection, and ensure safe grid connection of renewable energy power.
Commonly deployed in high-voltage distribution systems of steel, chemical, cement and other industrial plants, these fuses adapt to demanding and complex industrial loads and provide reliable overload and short-circuit protection for oil-immersed transformers. Their compact layout fits well in narrow industrial power distribution rooms, and the plug-in structure enables quick replacement, greatly cutting maintenance time and minimizing production outage losses.
These fuses are purpose-built for oil-filled operating environments. The joints between end caps and fuse tubes adopt dual sealing design with rubber gaskets and oil-resistant adhesives, efficiently preventing transformer oil leakage and external moisture infiltration. Certain high-specification models adopt dry barrel base plug-in structure, with fuse elements placed in dry barrels isolated from transformer oil. This structure maintains stable internal oil system safety, allows fuse replacement without draining transformer oil, and effectively cuts daily maintenance costs.
Equipped with excellent current-limiting properties, the High Voltage Limit Current Fuse for Oil-Immersed Transformers can complete fault interruption within 3 to 6 milliseconds, far quicker than ordinary circuit breakers that usually take tens of milliseconds. They restrain rising short-circuit current efficiently with a current limiting ratio below 0.35, lowering electrodynamic impact and thermal damage to equipment, so as to fully protect transformer windings and insulation systems and reduce fault repair expenses. In addition, their accurate inverse time-current characteristics (tolerance within ±10%) can well endure normal transformer magnetizing inrush current and avoid unwanted tripping.
Constructed with quartz-sand-filled sealed porcelain tubes, the fuses can rapidly cool and quench electric arcs generated during fusing, avoiding arc restrike and transient overvoltage. The fuse tubes are made of high-temperature resistant and high-strength alumina porcelain, with an interrupting capacity exceeding 1000MVA. They ensure stable fault circuit breaking and avert hazards such as phase-to-phase short circuits and equipment explosion, fully complying with strict safety criteria for oil-immersed electrical equipment.
Lightweight and space-saving, the fuses fit various installation spaces, especially space-restricted devices like American-style pad-mounted transformers. The plug-in design enables fuse replacement without complex tools; a single worker can finish the whole operation outside the transformer tank within 5 to 10 minutes, greatly shortening maintenance cycles and power outage duration. Equipped with unified standard interfaces, they enjoy strong compatibility with load break switches, ring main units and other power equipment, simplifying engineering design and field construction work.
Compared with high-voltage circuit breakers, these High Voltage Limit Current Fuse for Oil-Immersed Transformers require much lower initial investment, costing merely 1/5 to 1/10 of circuit breakers. Featuring simple structures without intricate mechanical operating components, they barely need routine maintenance. With long service life and low failure rate, they form a highly cost-effective protection scheme when matched with load break switches, making them ideal for large-scale promotion in distribution networks. Rapid fault isolation also reduces outage scope and duration, improving overall grid power supply reliability and mitigating indirect economic losses.
