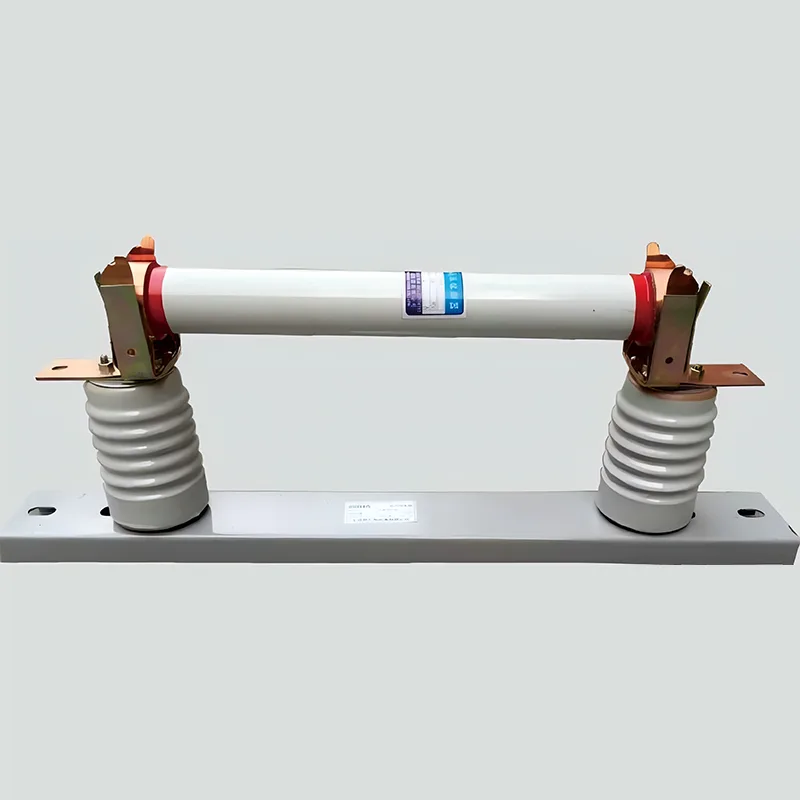

RN1 Indoor High Voltage Current Limiting Fuses are classic protective components for medium-voltage power distribution systems, widely applied in 6kV, 10kV and 35kV indoor power facilities. Boasting outstanding current-limiting and breaking performance, they have become indispensable protective equipment for substations and industrial power distribution rooms.
Tailored exclusively for indoor power distribution scenarios, these robust protective devices satisfy various protection demands across diverse fields:
Primarily installed in indoor high-voltage switchgears, ring main units and metering cabinets, they provide core short-circuit and overload protection for distribution lines and high-voltage branch circuits. Their compact structure fits well within the limited space of enclosed indoor cabinets.
Commonly used for high-voltage side protection of small indoor distribution transformers in industrial enterprises and community-owned substations, they quickly isolate faults including winding short circuits and overloads to keep transformers running stably.
Widely deployed in circuits connected to indoor voltage transformers and high-voltage shunt capacitor cabinets in substations, they steadily endure normal magnetizing inrush currents and blow promptly upon short-circuit faults, fully protecting high-precision power equipment.
Ideal for high-voltage power distribution rooms in large factories, commercial complexes, hospitals and schools, they resolve faults arising from load fluctuations and line aging to ensure stable power supply.
RN1 indoor high-voltage current-limiting fuses feature a quartz sand-filled porcelain tube structure. Upon occurrence of short-circuit faults, they effectively limit peak currents, instantly extinguish electric arcs and suppress switching overvoltages, ensuring high breaking capacity and excellent operational safety.
Fabricated with high-strength insulating porcelain housings, they possess strong resistance against dust, moisture and pollution. Not affected by outdoor harsh weather such as rain and salt spray, they are perfectly suitable for dry and enclosed indoor operating environments and feature superior long-term anti-aging properties.
Equipped with standard inverse time-current characteristics, they withstand normal equipment starting inrush currents to avoid misoperation, and act accurately within specified time limits under overload and short-circuit conditions, facilitating seamless coordination with upper and lower protection devices.
Engineered with standardized compact dimensions compatible with most mainstream indoor cabinets, they are simple to disassemble and replace without professional complicated tools, which greatly reduces maintenance downtime.
A complete series of specifications covering various voltage levels and rated currents can meet diverse matching requirements of power equipment. With a simple structure free of mechanical moving parts, they need no regular maintenance, thus substantially lowering procurement and operating expenses.
Endowed with dependable quality, accurate protection capability and remarkable cost-effectiveness, RN1 Indoor High Voltage Current Limiting Fuses stand as the preferred mainstream products for indoor medium-voltage power distribution protection. Their mature and proven design has long provided reliable power safety protection for substations, industrial facilities and civil buildings all over the world.
